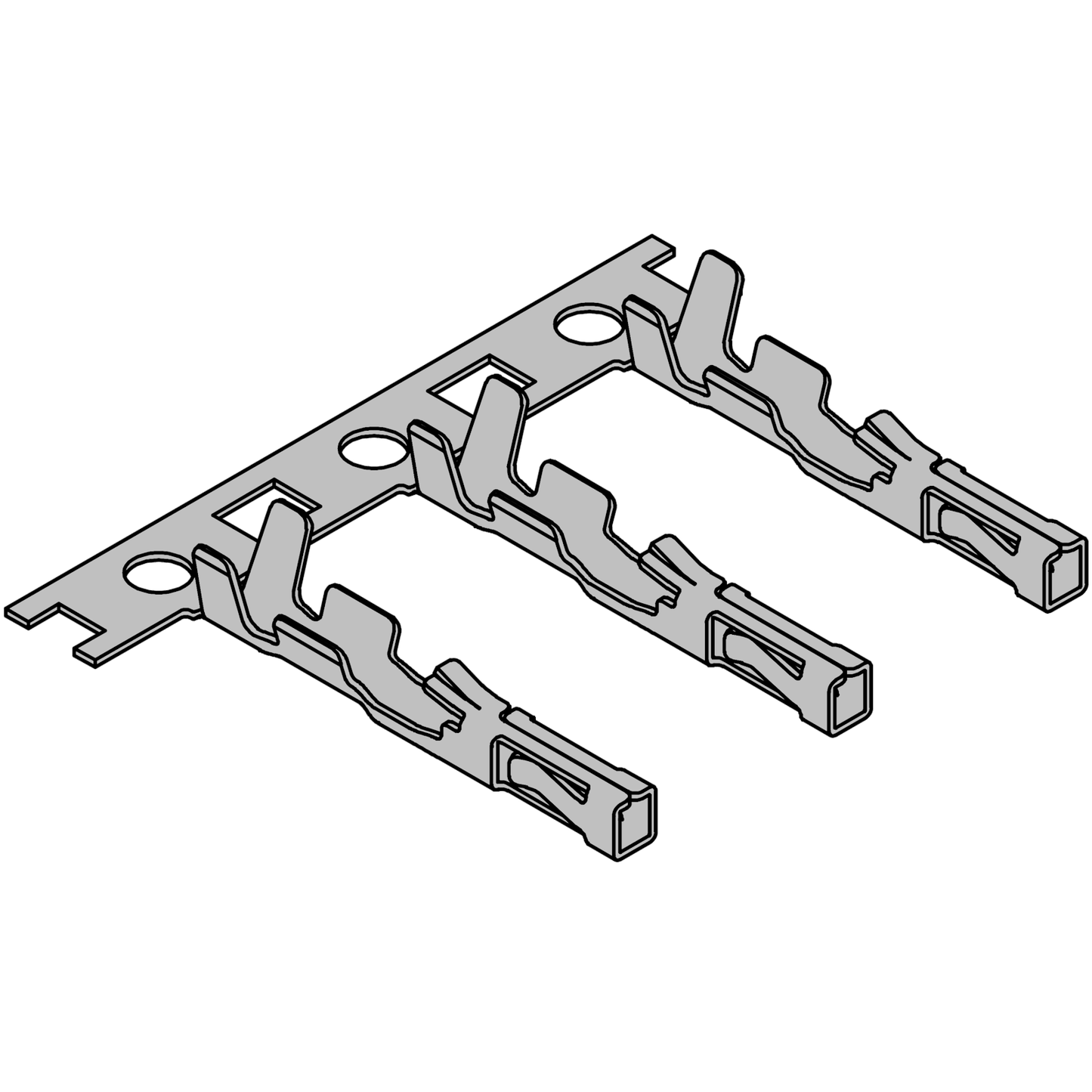

TJC8B Plug Crimp Terminal

TJC8B Plug Crimp Terminal

1 1
Quantity Unit Price
1+ £0.04
50+ £0.036
100+ £0.032
200+ £0.028
500+ £0.022
1000+ £0.02

Part Information

Part Number TJC8B-254-YT
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series Name TJC8B-TJC8H-254
Pin Pitch 2.54mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1000V AC/min
Compatible Wire Size 28AWG ~ 22AWG
Compatibility
  • Ampmodu MTE
  • TE 10427
  • TE 103653
View full details

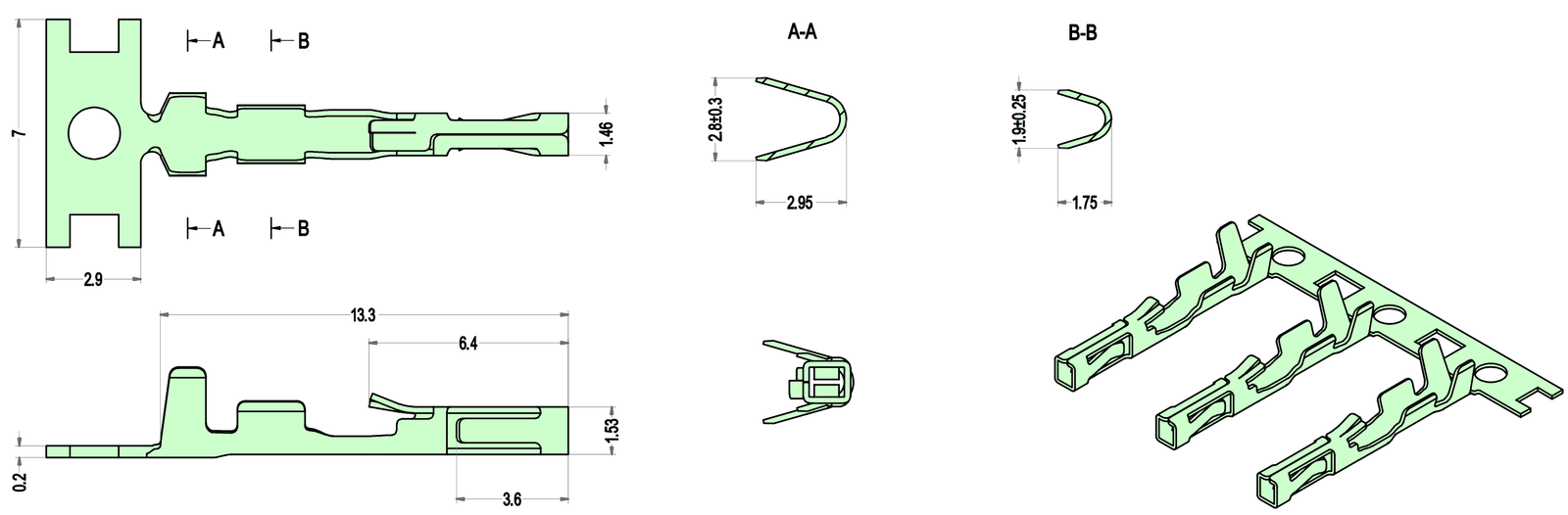

Diagram
