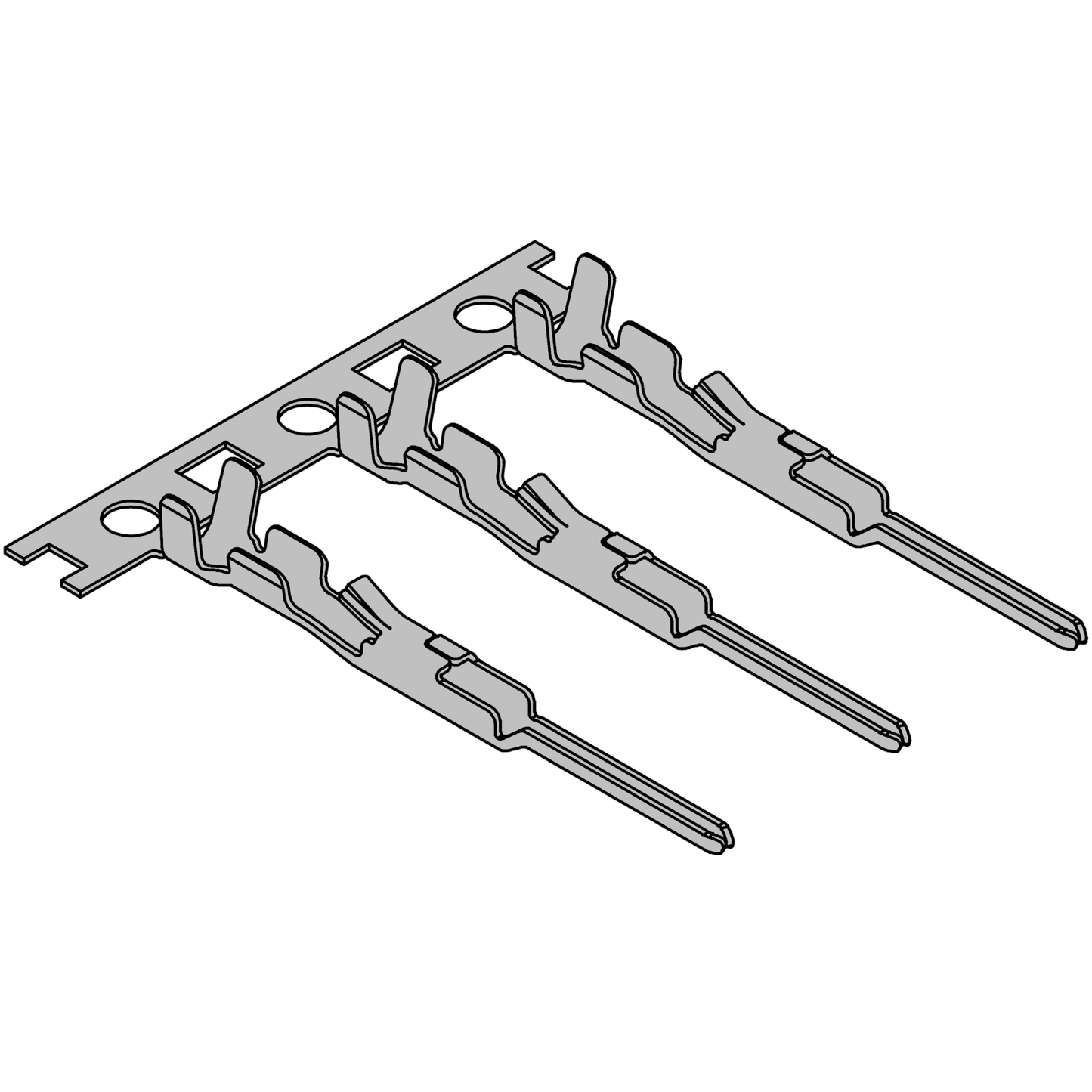

TJC8H Wire Socket Crimp Terminal

TJC8H Wire Socket Crimp Terminal

1 1
Quantity Unit Price
1+ £0.05
50+ £0.045
100+ £0.04
200+ £0.035
500+ £0.0275
1000+ £0.025

Part Specification

Part NumberTJC8H-254-RT
Part TypeWire Socket Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series NameTJC8B-TJC8H-254
Pin Pitch2.54mm
Maximum Voltage250V
Maximum Current3.0A
Temperature Range-25°C ~ 105°C
Contact Resistance20mΩ
Insulation Resistance1000MΩ
Withstand Voltage1000V AC/min
Compatible Wire Size28AWG ~ 22AWG
Compatibility
  • Ampmodu MTE
  • TE 10427
  • TE 103653
View full details

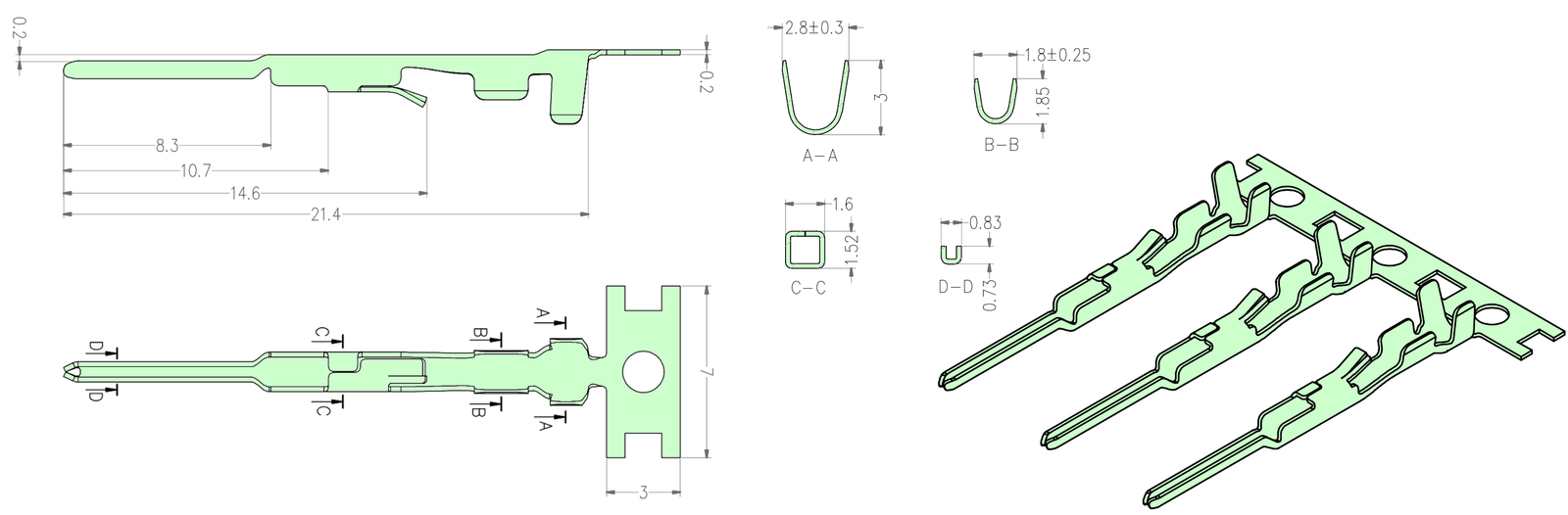

Diagram

Related Series
