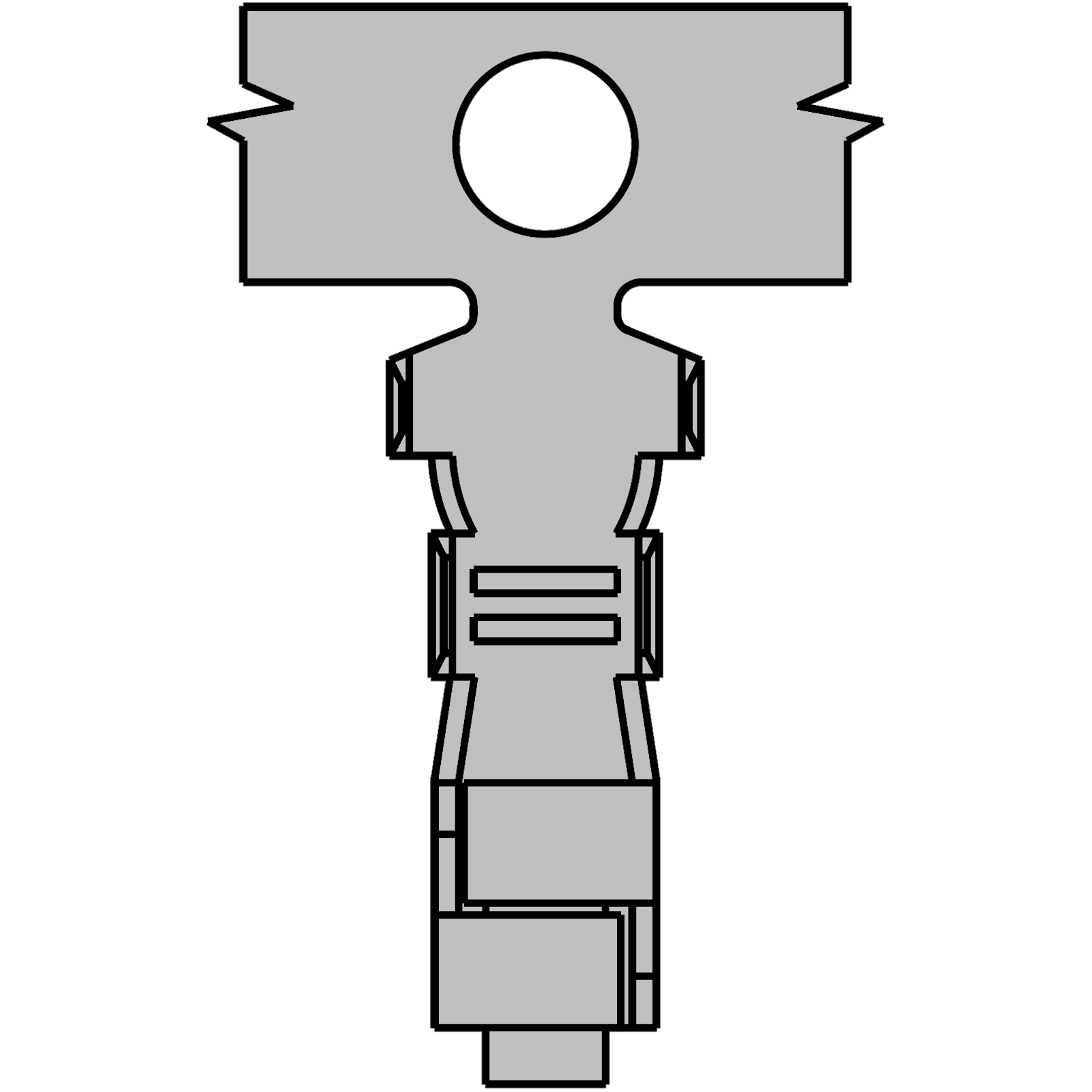

TJC9 Plug Crimp Terminal

TJC9 Plug Crimp Terminal

1 1
Quantity Unit Price
1+ £0.04
50+ £0.036
100+ £0.032
200+ £0.028
500+ £0.022
1000+ £0.02

Part Specification

Part NumberTJC9-250-YT
Part TypePlug Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series NameTJC9-250
Pin Pitch2.5mm
Maximum Voltage250V
Maximum Current3.0A
Temperature Range-25°C ~ 85°C
Contact Resistance20mΩ
Insulation Resistance1000MΩ
Withstand Voltage1000V AC/min
Compatible Wire Size28AWG ~ 22AWG
Wire Insulation Size (OD)1.2mm ~ 1.9mm
View full details

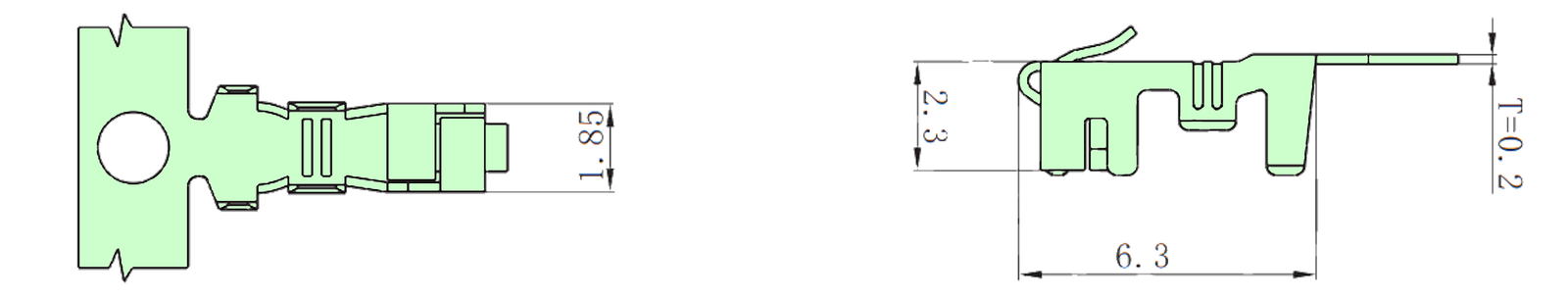

Diagram
