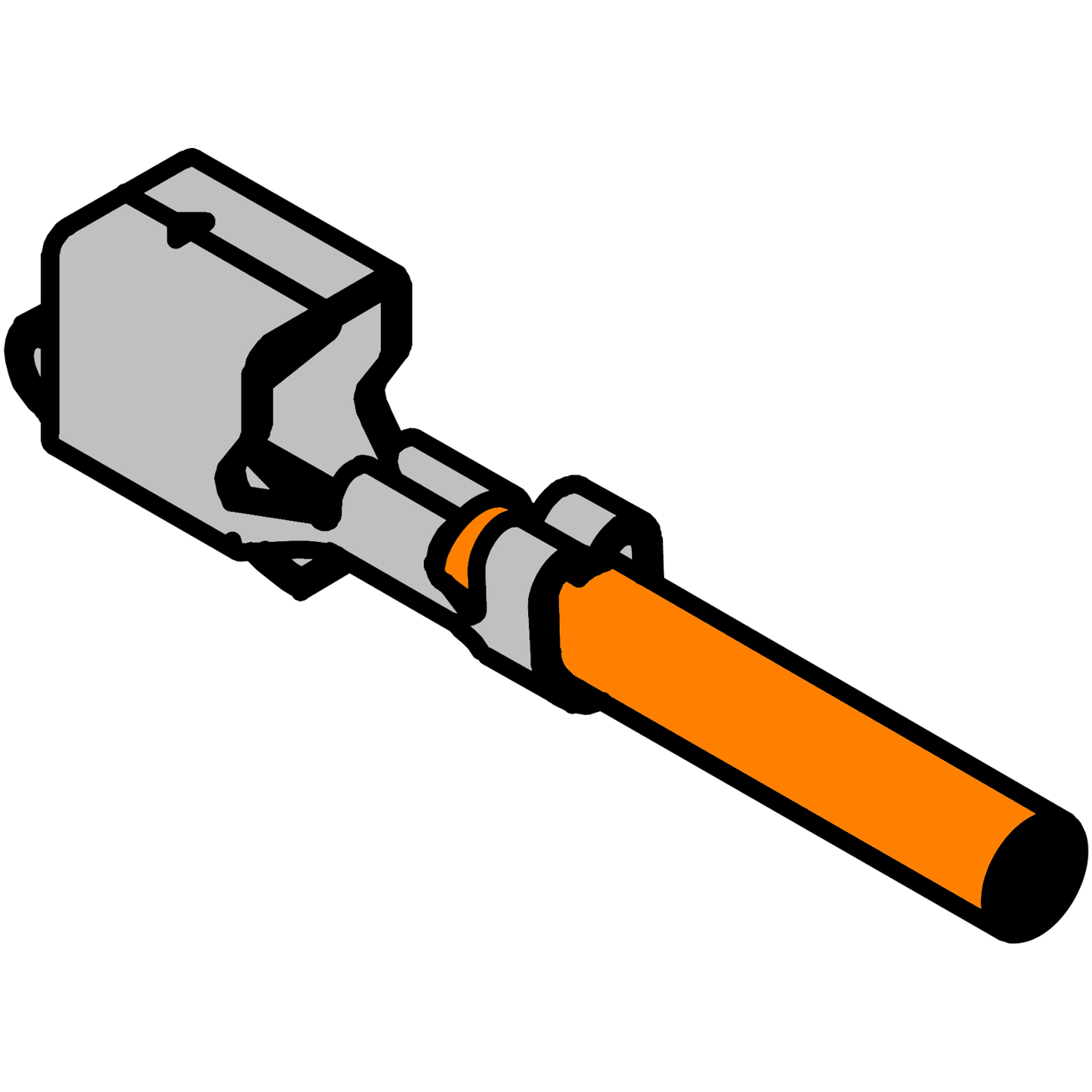

VH Crimped Wire 200mm (Plug Crimp, Plug Crimp)

VH Crimped Wire 200mm (Plug Crimp, Plug Crimp)

1 1
Wire Colour
Quantity Unit Price
1+ £0.36

Part Information

Part Number VH-396-W200-YT-YT
Wire Termination Plug Crimp / Plug Crimp
Colour Blue
Wire Length 200mm
Wire Size 22AWG
Wire Outer Diameter 2.4mm
Materials
  • Phosphor bronze
  • Tin
  • Copper
  • PVC

Series Specification

Series Name VH-396
Pin Pitch 3.96mm
Maximum Voltage 250V
Maximum Current 10.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 26AWG ~ 18AWG
Wire Insulation Size (OD) 1.7mm ~ 3.0mm
Compatibility
  • JST VH
