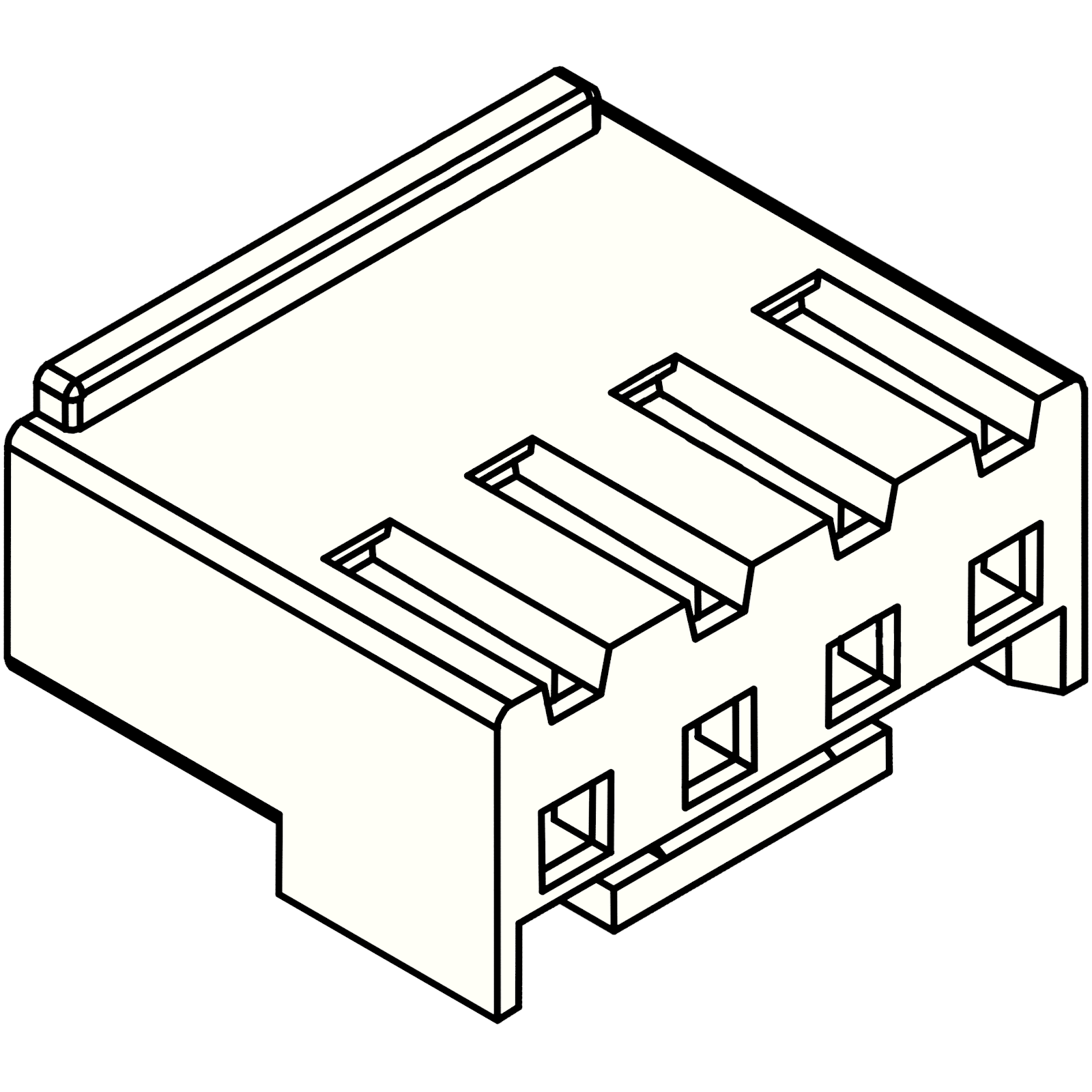

VH Plug Housing 4-pin

VH Plug Housing 4-pin

1 1
Quantity Unit Price
1+ £0.12
5+ £0.1086
10+ £0.0948
20+ £0.0828
50+ £0.0732
100+ £0.06

Part Information

Part Number VH-396-4Y
Row Count 1
Pin Count 4
Colour White
Materials
  • Nylon PA66 (UL94V-0)

Series Specification

Series Name VH-396
Pin Pitch 3.96mm
Maximum Voltage 250V
Maximum Current 10.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 26AWG ~ 18AWG
Wire Insulation Size (OD) 1.7mm ~ 3.0mm
Compatibility
  • JST VH
View full details

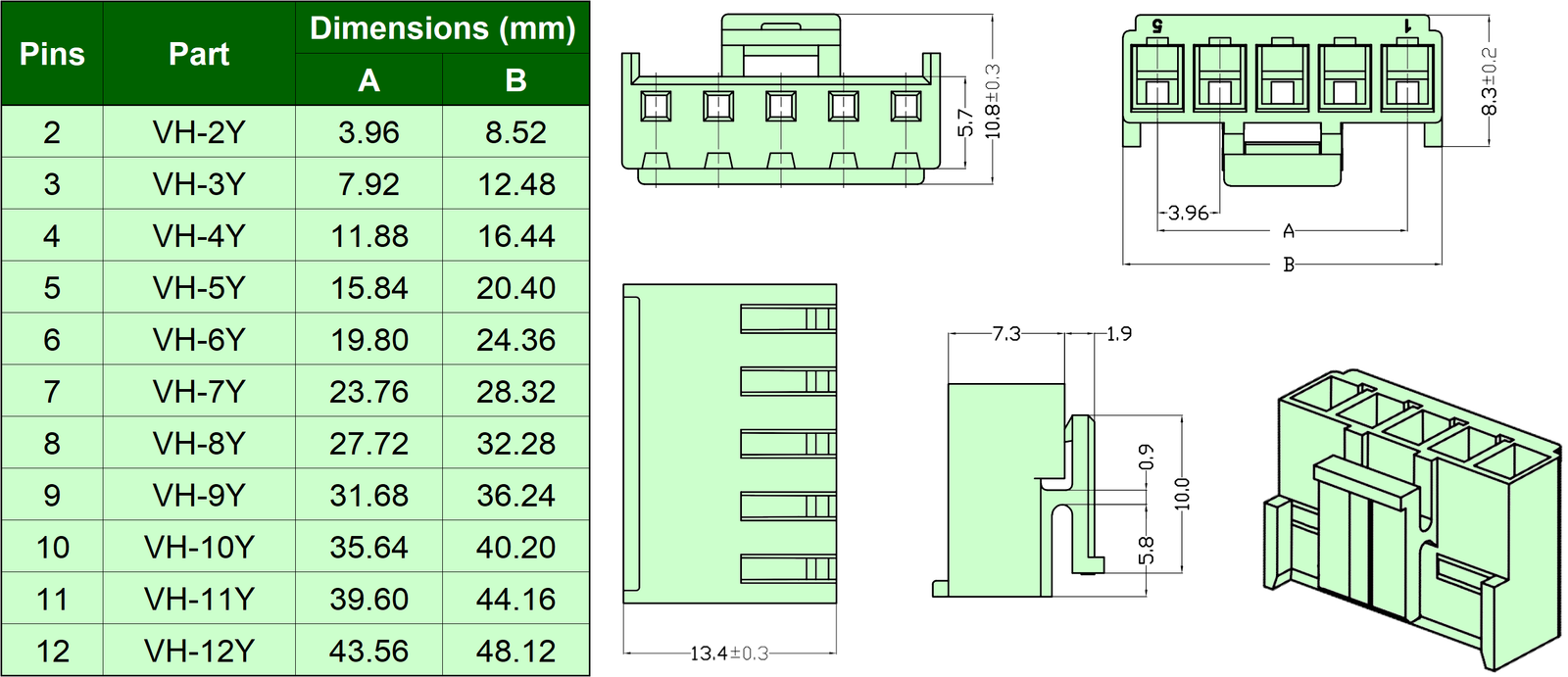

Diagram
